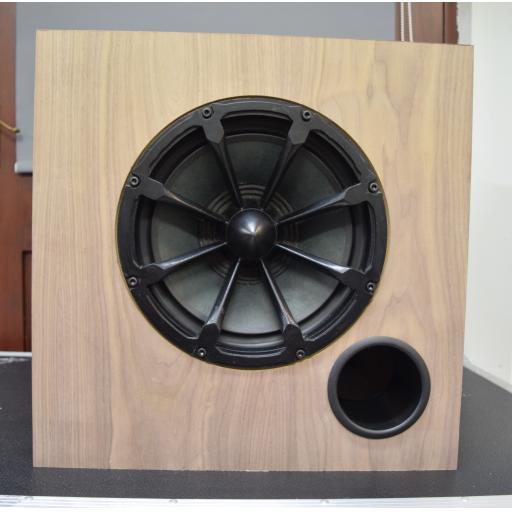

TITAN 12 Sub-woofer

This TITAN 12 active sub-woofer uses a Volt RV3143 drive unit. The front-firing bass driver will give a fast, accurate bass sound that is dynamic and clean.

The Tornado is powered by a Class D digital 500w amplifier module with RCA inputs and outputs. Complete with variable low pass filter (40-200Hz), continuously adjustable phase control (0-180) and an integrated bass boost of approximately 3 dB at 40 Hz

Basic Kit includes:
Loudspeaker drive units
High-quality 500 watt digital amplifier module (SAM-500D)
Oxygen free copper cable
Damping materials including cabinet lining and internal wadding
Reflex ports
Gaskets or sealing strips for drive units
All fixing bolts and screws
Grille Cloth (Black is supplied as standard but other colours are available on request)
Grille fixing studs
Wilmslow Audio 3-colour self-adhesive acrylic badges
Fully detailed assembly instructions, including CAD cabinet drawings
Cabinets and additional options shown separately

Specifications:

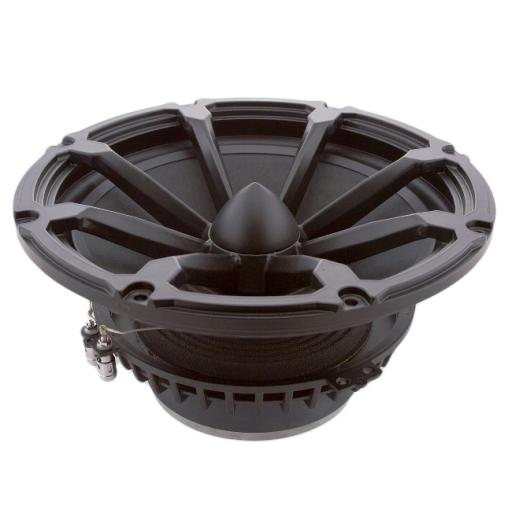

Drive unit:                             Volt RV3143
Output power:                      500w (4 ohm) - 250w (8ohm)
Enclosure type:                    Single unit reflex
Frequency response:          29Hz-240Hz
Adjustable roll-off:                40Hz-200Hz
Driver Impedance:                8 Ohm
Internal volume:                    90 litres
Dimensions (HxWxD):         500 x 500 x 500mm

Price each excluding VAT
