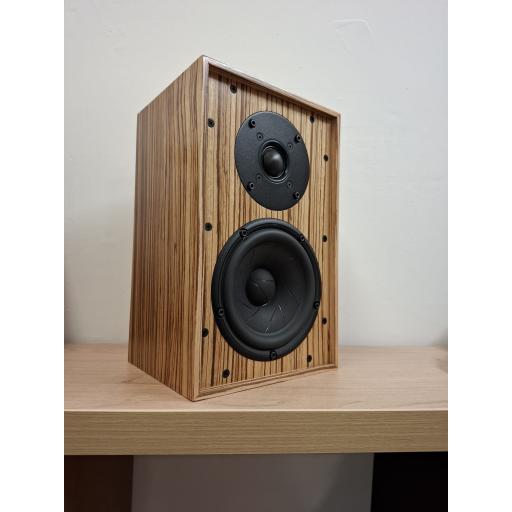

WA: LS3 SE

 Based on our very popular WA-LS3 design, the WA-LS3 SE upgrades both treble and mid/bass units to provide a high end bookshelf monitor at a very affordable price. The high frequencies are provided by the renowned Scanspeak D2905/950000, which delivers a clear and natural top end and is underpinned by the tight punchy bass of the Monacor SPH-135C, carbon weave coned mid/bass unit.

Basic Kit includes:

Loudspeaker drive units
High-quality crossovers, custom designed for each kit and built on high-grade PCBs
Recessed terminal trays with gold-plated binding posts
Oxygen free copper cable
Damping materials including cabinet lining and internal wadding
Gaskets or sealing strips for drive units
All fixing bolts and screws
Grille Cloth (Black is supplied as standard but other colours are available on request)
Grille fixing studs
Fully detailed assembly instructions, including CAD cabinet drawings
Cabinets and additional options shown separately

Specifications:

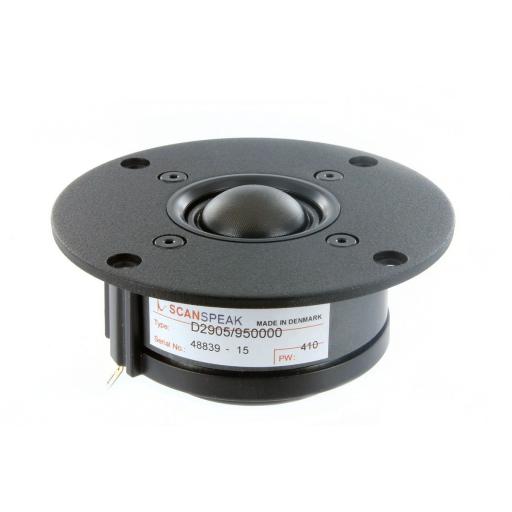

Treble:                          Scanspeak D2905/950000

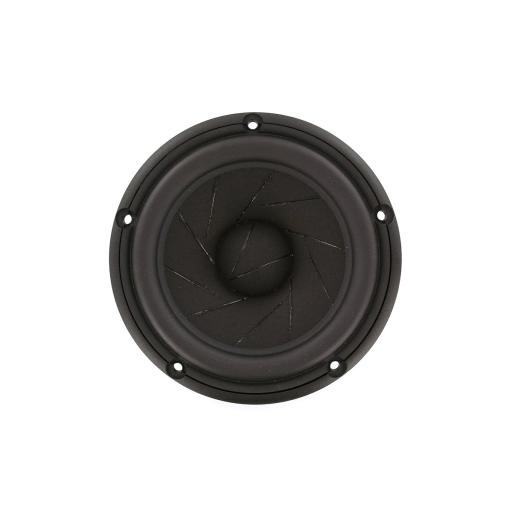

Bass-mid:                      Monacor SPH-135C
Enclosure type:             2-way infinite baffle
Frequency response:   40Hz - 30000Hz
Sensitivity (2.83v/1m):  89dB
Amp requirement:         30-100w
Impedance:                    8 ohm
Internal volume:             5 litres per speaker
Weight:                            14Kg per pair
Dimensions (HxWxD):   305mm high x 190mm wide x 165mm deep

To compliment the loudspeaker kits, we offer an ever-expanding range of cabinets.

The LS3 SE cabinets are supplied in three different options as shown below, all are fully CNC machined and rebated from 18mm  MDF.

Flat-pack option:

Cabinets supplied as a self-assembly flat-pack in either plain mdf or pre-veneered mdf of your choice. Both options are fully machined and rebated which means that the components all slot together very easily, just needing to be glued with the PVA wood adhesive that is provided. All the necessary holes and rebates for the drive units are pre-machined so you can assemble the cabinets without having any wood-work skills.

Factory built option (Real wood veneer)

Cabinets are supplied fully assembled and lacquered with drive units, crossovers etc. factory fitted, eliminating the need for you to undertake any construction and ready to plug and play.

Price per pair

Use the drop down box to chose your kit option. The options allow you to buy this loudspeaker kit with or without cabinets. Cabinets can be flat-packed or fully built and assembled.
