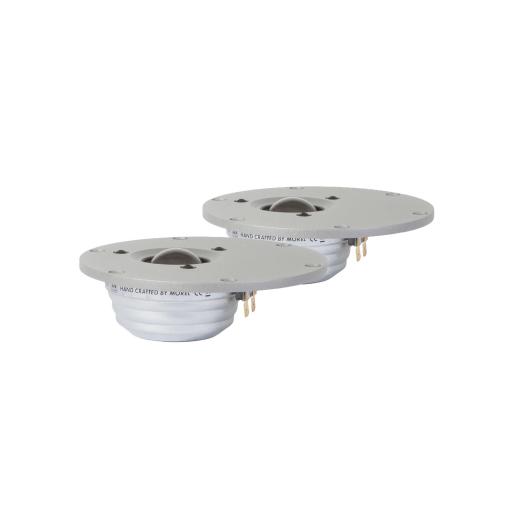

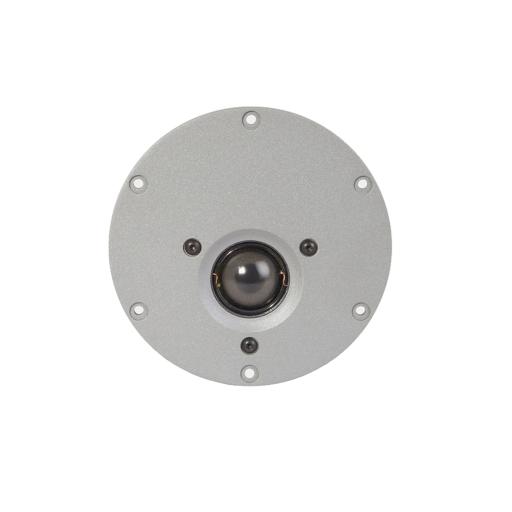

Morel Supreme ST1308

Morel Supreme ST1308

£272.00 ex VAT

£326.40 inc. VAT

Qty

Soft Dome Treble

Morel's flagship 28mm soft dome treble, with large offset design aluminium faceplate, Neodymium flat pancake design magnet system, large Hexatech aluminium voice coil and sturdy gold plated terminals.

Replacement dome/coil assembly available - Order code R32

Technical Data:

Faceplate Diameter: 130mm

Sensitivity (2.83v/1m): 91.5dB

Nominal impedance: 8 ohm

Frequency range: 1.4-22kHz

Free air resonance: 680kHz

DC resistance (Re): 5.2 ohm

Voice coil inductance (Le): 0.09mH

Effective piston area (Sd): 6.0cm

Moving Mass (Md): 0.44g

Voice coil diameter: 28mm

Nominal power handling: 220w

Physical Sizes:

Faceplate diameter: 130mm

Overall depth (front of faceplate to rear of chamber): 40mm

Faceplate thickness: 5mm

Fixing holes: 6 x 3.7mm diameter on 118mm PCD

Cutout diameter: 104mm

Price per single unit excluding VAT
