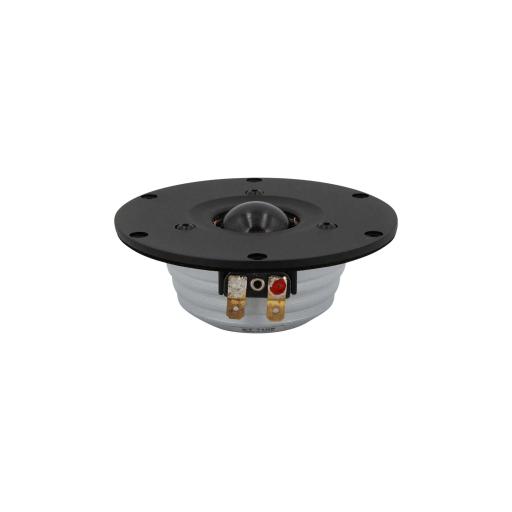

Morel Supreme ST 1108 1" Dome Tweeter Matched Pair

Morel Supreme ST 1108 1" Dome Tweeter Matched Pair

£591.23 ex VAT

£709.48 inc. VAT

Qty

Soft Dome Treble

Morel's flagship 28mm soft dome treble, with Improved Dispersion Recess (IDR) design faceplate, large underhung Hexatech aluminium voice coil, Neodymium flat pancake design magnet system and sturdy gold plated terminals.

Replacement dome/coil assembly available - Order code R32

Technical Data:

Faceplate Diameter: 110mm

Sensitivity (2.83v/1m): 91.5dB

Nominal impedance: 8 ohm

Frequency range: 1.4-22kHz

Free air resonance: 680kHz

DC resistance (Re): 5.2 ohm

Voice coil inductance (Le): 0.09mH

Effective piston area (Sd): 6.0cm

Moving Mass (Md): 0.44g

Voice coil diameter: 28mm

Nominal power handling: 220w

Physical Sizes:

Faceplate diameter: 110mm

Overall depth (front of faceplate to rear of chamber): 40mm

Faceplate thickness: 3mm

Fixing holes: 6 x 3.7mm diameter on 100mm PCD

Cutout diameter: 76mm

Price per matched pair excluding VAT
