Aluminium Cone Mid/Bass

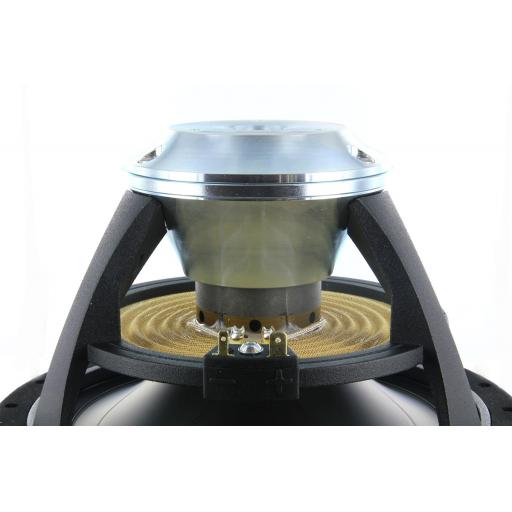

This Illuminator mid/bass unit utilises Scanspeak's patent anodised aluminium cone and compact under-hung Neodymium magnet system, producing a unit that offers an exceptionally long linear excursion and very high force factor.
The uniquely designed front flange is shaped to guide the airflow around the rear of the unit and along with the open diecast aluminium chassis, helps to produce a unit that is virtually compression free.
Technical Data:
Frame diameter: 184mm
Sensitivity (2.83v/1m): 85.5dB
Nominal impedance: 8 ohm
Frequency range: 36Hz - 4000Hz
Free air resonance: 36Hz
DC resistance (Re): 5.81 ohm
Voice coil inductance (Le): 0.6mH
Effective piston area (Sd): 154.0cm
Moving Mass (Md): 18g
Force factor (BL): 7.4Tm
Excursion (lin-max): +/-9mm : +/-16mm
Qms: 3.72
Qes: 0.43
Qts: 0.38
Vas: 36.2L
Voice coil diameter: 42mm
Nominal power handling: 150w
Physical Sizes:
Frame diameter: 184mm
Overall depth (front of frame to rear of magnet): 105mm
Flange thickness: 7.5mm
Fixing holes: 6 x 4.2mm diameter on 172.5mm PCD (not equally spaced)
Cutout diameter: 160mm
Price per single unit excluding VAT
