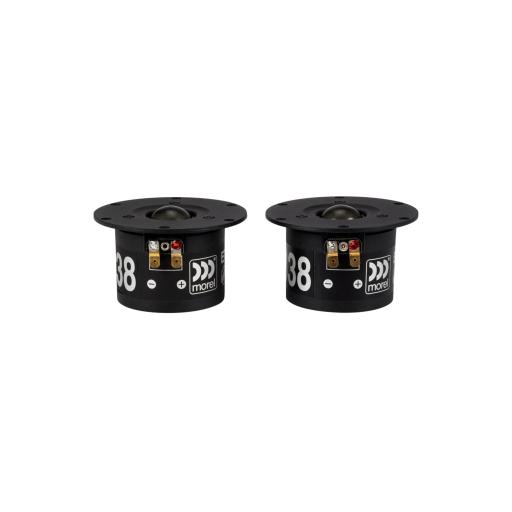

Morel Elite ET338-104

Morel Elite ET338-104

£188.00 ex VAT

£225.60 inc. VAT

Qty

Soft Dome Treble

High quality 28mm soft dome treble, with Improved Dispersion Recess (IDR) design faceplate, large Hexatech aluminium voice coil, triple magnet system and sturdy gold plated terminals.

Replacement dome/coil assembly available - Order code R32

Technical Data:

Faceplate Diameter: 104mm

Sensitivity (2.83v/1m): 92dB

Nominal impedance: 8 ohm

Frequency range: 1.8-20kHz

Free air resonance: 700kHz

DC resistance (Re): 5.2 ohm

Voice coil inductance (Le): 0.09mH

Effective piston area (Sd): 6.0cm

Moving Mass (Md): 0.44g

Voice coil diameter: 28mm

Nominal power handling: 200w

Physical Sizes:

Faceplate diameter: 104mm

Overall depth (front of faceplate to rear of chamber): 66mm

Faceplate thickness: 3mm

Fixing holes: 6 x 3.7mm diameter on 94mm PCD

Cutout diameter: 76mm

Price per single unit excluding VAT
